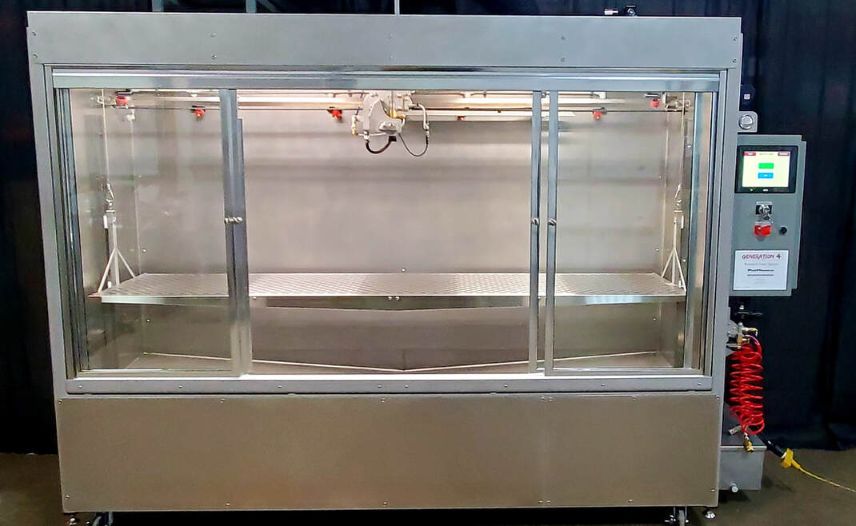

Generation 4 Research Track Sprayers

SB6
Footprint dimensions: 31.5in by 7ft4in (0.8m by 2.24m)
Height for transport: 83.5in (2.12m)
Nozzle travel length: 4ft (1.22m)
Inside front to back dimension:27.5in (0.7m)

SB6D
Footprint dimensions: 43.5in by 7ft4in (0.8m by 2.24m)
Height for transport: 83.5in (2.12m)
Nozzle travel length: 4ft (1.22m)
Inside front to back dimension:39.5 (0.7m)

SB8
Footprint dimensions: 31.5in by 9ft4in (0.8m by 2.85m)
Height for transport: 83.5in (2.12m)
Nozzle travel length: 6ft (1.83m)
Inside front to back dimension:27.5in (0.7m)

SB8D
Footprint dimensions: 43.5in by 9ft4in. (1.1m by 2.24m)
Height for transport: 83.5in (2.12m)
Nozzle travel length: 6ft (1.83m)
Inside front to back dimension:39.5in (1m)

Standard speed range: 0-4mph (0-6.4kph)
Distance from spray nozzle to shelf surface: 12in-36in (0.3m-0.91m)

All sprayers require 120V, 15A, 50-60hertz power supply. All sprayers require a compressed air or CO2 supply of 60PSI max and less than 1cfm, and a water supply.

Customizable Features

HMI Touch Screen

Customizable Spray Head Options
